Crumble Roller

The Yeomans Crumble Roller is designed to improve surface finish, and leave paddocks level and consolidated after subsoiling by breaking down surface clods and improving seed‑to‑soil contact. It is particularly valued in pasture renovation, irrigation country, and finishing work where soil structure is being improved without excessive surface disturbance.

As Yeomans shanks are designed to efficiently pull themselves into the soil, the crumble roller provides a controlled counterforce that improves consistency and reduces unnecessary draft load on the tractor.

Available in both manual of hydraulic lift, a crumble roller has been shown to:

  • Improved soil aggregation and surface stability
  • Reduce surface roughness and clodding after deep ripping
  • Increase moisture retention by closing large air voids near the surface
  • Improve seed‑to‑soil contact when oversowing pasture or using a Tickle‑Pot Seeder in the same pass
  • Produce a friable, medium‑textured soil finish suitable for follow‑on operations
Categories: ,

Manual Crumble Roller Range

Plow Model Recommended Width
P40 775mm (30.5″) or 978mm (38.5″)
R56 1220mm (48″)
SB-6 / GP-6 2070mm (81.5″)
SB-8 / GP-8 2578mm (101.5″)
J-9 / JA-9 / L43-9 2768mm (109″)
SB-10 / GP-10 / L43-10 / L65-10 3050mm (120″)
Plow Model Recommended Roller Width
SB-11 / J-11 / L43-11 / L65-11 3530mm (135″)
J14 / L43-14 / L65-14 3581mm (141″)
Dual Rollers
J / JA 787mm (31″) each or 812mm (32″) each

Hydraulic Roller Range

Plow Model Recommended Roller Width
P40 775mm (30.5″) or 978mm (38.5″)
R56 1220mm (48″)
SB-6 / GP-6 2070mm (81.5″)
SB-8 / GP-8 2578mm (101.5″)
J-9 / JA-9 / L43-9 2768mm (109″)
SB-10 / GP-10 / L43-10 / L65-10 3050mm (120″)
Plow Model Recommended Roller Width
SB-11 / J-11 / L43-11 / L65-11 3530mm (139″)
J14 / L43-14 / L65-14 3581mm (141″)
L60-16 / L65-16 4267mm (168″) each
L60-19 / L65-19 4851mm (191″) each
Dual Rollers
J / JA 787mm (31″) each or 812mm (32″) each

For frames wider than 5.8m, two equal length rollers will need to be fitter with a 127mm (5″) space between them.

FEATURES

    • Quality Australian made
    • Crumble Rollers are available for all plow models
    • Rollers are designed to be easily retro-fitted to existing plow frames.
    • Hydraulic lift control is available for most plow configurations.

CROPPING ROLLER

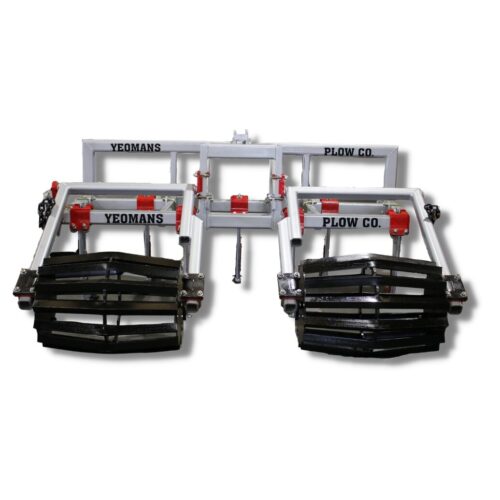

    • Dual barrel shaped crumple rollers are available for row cropping applications. These models are 812mm wide for the standard model and 787mm wide for the stump jump model.

STUMP JUMP ROLLER

  • Crumble Roller fitted to Stump Jump plow models are fitted with a safety mechanism which allows the roller to safely roll over obstacles without causing damage to the roller or frame.

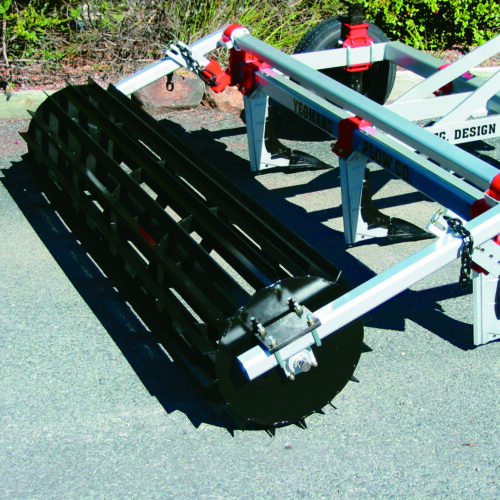

  • Yeomans GP39, keyline water control, sub soil aeration , fitted with wombat points xarm crumble roller
    Standard 26" Diameter Roller
